Available metal substrates thickness are between 0.2mm-0.8mm.Max width is 800mm. Rubber coating thickness is between 0.02-0.1 2mm single and double -side rubber coated metal roll material can meet the requirement of different customers.
-
UNX Other Series
with other thicknessPTFE coating has the characters of high temperature resistance, smooth, anti-stick.
Choose one or two sides of PTFE.
Textured NBR provide unique product appearance.
Used as abutment clips.
Create the possibility of providing a comfortable and quiet drive for you.
-
Rubber Coated Metal – SNX5240
with other thicknessOne of our best-selling products.
SNX5240 rubber coated metal composite material is based on cold-rolled steel plate with NBR rubber coating on both sides.
Withstand high temperature for long term and have excellent noise reduction performance in the braking system.
Fine shock damping and noise absorption effect.
Especially suitable for the pads fixed by clip.
High cost performance and can replace the import material. -
SNX5240J Series
with other thicknessCombined with a variety of PSA (cold adhesive), on the base of SNX5240; we have 4 kinds cold adhesive with different thickness now.
Different glues have different characters to meet customers’ requirements.
Aftermarket brake noise insulator materials.
Anti-rust surface treatment of steel ensures good corrosion resistance property.
Mainly used as the noise damping and shock absorption shim for brake system.
Uniform thickness of steel plate and rubber coating and the surface is flat and smooth.
-
Rubber Coated Metal – SNX6440
with other thicknessOne of our best-selling products.
SNX5240 rubber coated metal composite material is based on cold-rolled steel plate with NBR rubber coating on both sides.
Withstand high temperature for long term and have excellent noise reduction performance in the braking system.
Fine shock damping and noise absorption effect.
Especially suitable for the pads fixed by clip.
High cost performance and can replace the import material. -
Rubber Coated Metal – SNX6440J Series
with other thicknessCombined with a variety of PSA (cold adhesive), on the base of SNX6440; we have 4 kinds cold adhesive with different thickness now.
Different glues have different characters to meet customers’ requirements.
Aftermarket brake noise insulator materials.
Anti-rust surface treatment of steel ensures good corrosion resistance property.
Mainly used as the noise damping and shock absorption shim for brake system.
Uniform thickness of steel plate and rubber coating and the surface is flat and smooth. -
Rubber Coated Metal – UNM3025
with other thicknessMainly for the accessory and engine gaskets.
Excellent high and low temperature resistance.
Good anti-ageing property.
Good seal ability and suitable for gas and fluid.
Excellent mechanical performance; the tensile strength reaches 100MPa with excellent compression, recovery and stress relaxation.
-
Rubber Coated Metal – UFM2520
with other thicknessMainly for engine and cylinder gasket.
Fluorine rubber has better resistance of high temperature. It can reach 240℃.
The working temperature has a wider range.
The surface is matt.
Suitable for high temperature environment and fluids including engine oil, anti-freezer and coolant, etc.
Good machinability and can be processed automatically in continuous way which keep the same lot gaskets in good consistence in quality.
Still a cost-effective choice.
-
Rubber Coated Metal – SNM3825
with other thicknessThe composite material is for sealing industry (mainly for engine and cylinder gasket).
Choose excellent raw material from home and abroad.
Cold-rolled steel coil with different thickness of NBR rubber coating on both sides by advanced technology according to customers’ requirement.
Have both metal rigidity and rubber elasticity for its special construction.
High adhesive force of the rubber coating and suitable for high temperature environment and fluids including engine oil, anti-freezer and coolant, etc.
-
Rubber Coated Metal UNX-1 Series

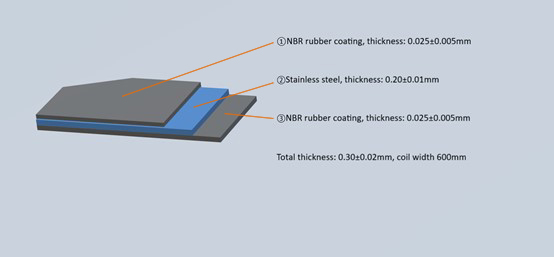

with other thicknessSingle side rubber coated series based on stainless steel SUS301.
The rubber coating has different thickness.
Used as abutment clips.
Suppress the sliding noise, improve the overall noise reduction performance of the braking system.
-
Rubber Coated Metal UNX-F Series
with other thicknessPTFE coating has the characters of high temperature resistance, smooth, anti-stick.
Choose one or two sides of PTFE.
Textured NBR provide unique product appearance.
Used as abutment clips.
Create the possibility of providing a comfortable and quiet drive for you.
